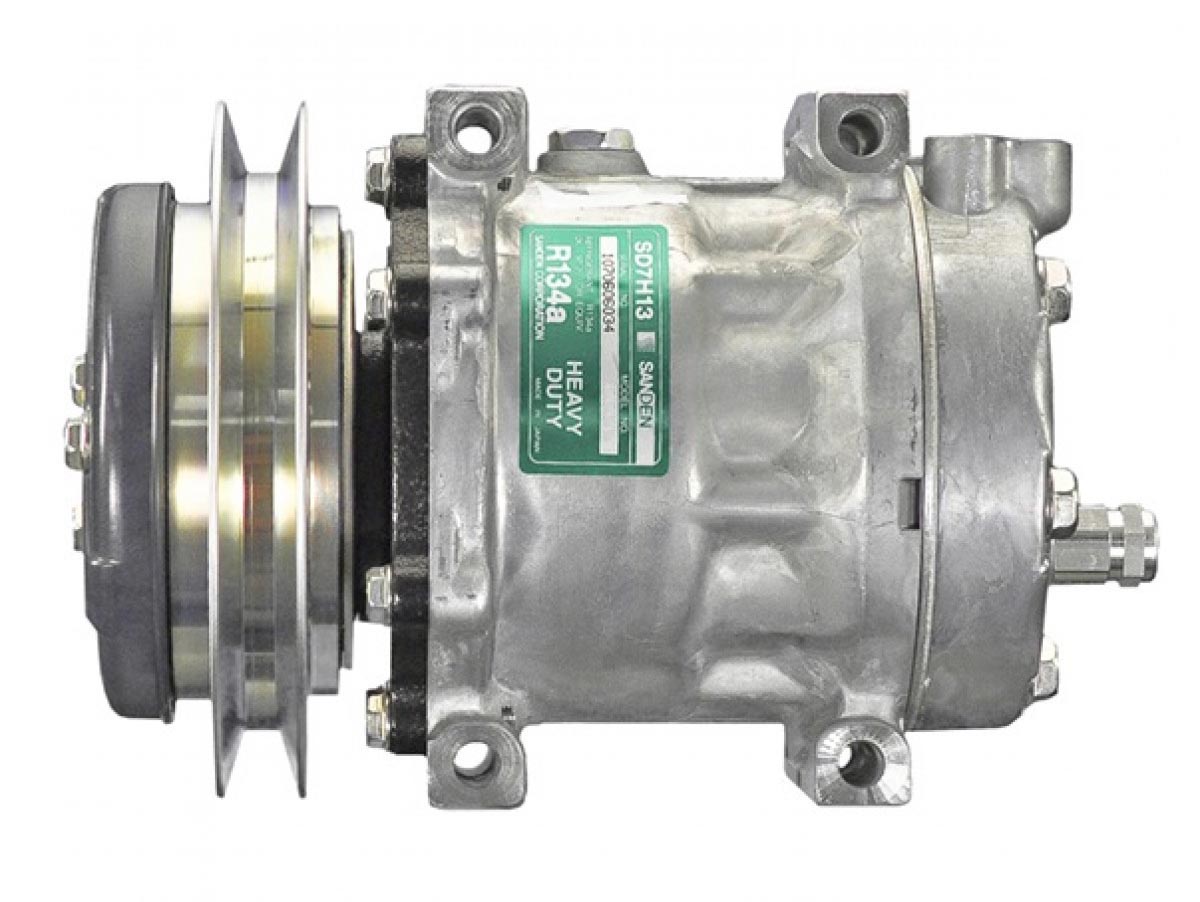

NEW Original Sanden Compressor 7361, DKR151300S (1101400)

Description: Kobelco – Excavators OEM Sanden Compressor SD7H13 W/1-A GR 24V WL HEAD
OEM Number: TDKR151300S, 7361, 57361
Volts: 24V
Clutch Diameter: 125mm
No. of Grooves: 1 groove
Belt Type: 1/2” Belt
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 7.9 cu.in.
Factory Oil Charge: 135cc Oil
Oil Type: PAG100
Fitting Port Position: Top
Fitting Style: Pad
Head Type: WL
Wire Type: 1 Wire Male Bullet
Model: SD7H13HD
Mounting Type: Direct mount
Refrigerant Type: R134a
Rotation: CW
Diode Protection: None

Schematic: CLICK HERE

Application: Kobelco- Excavators New Sanden Compressor 7361
