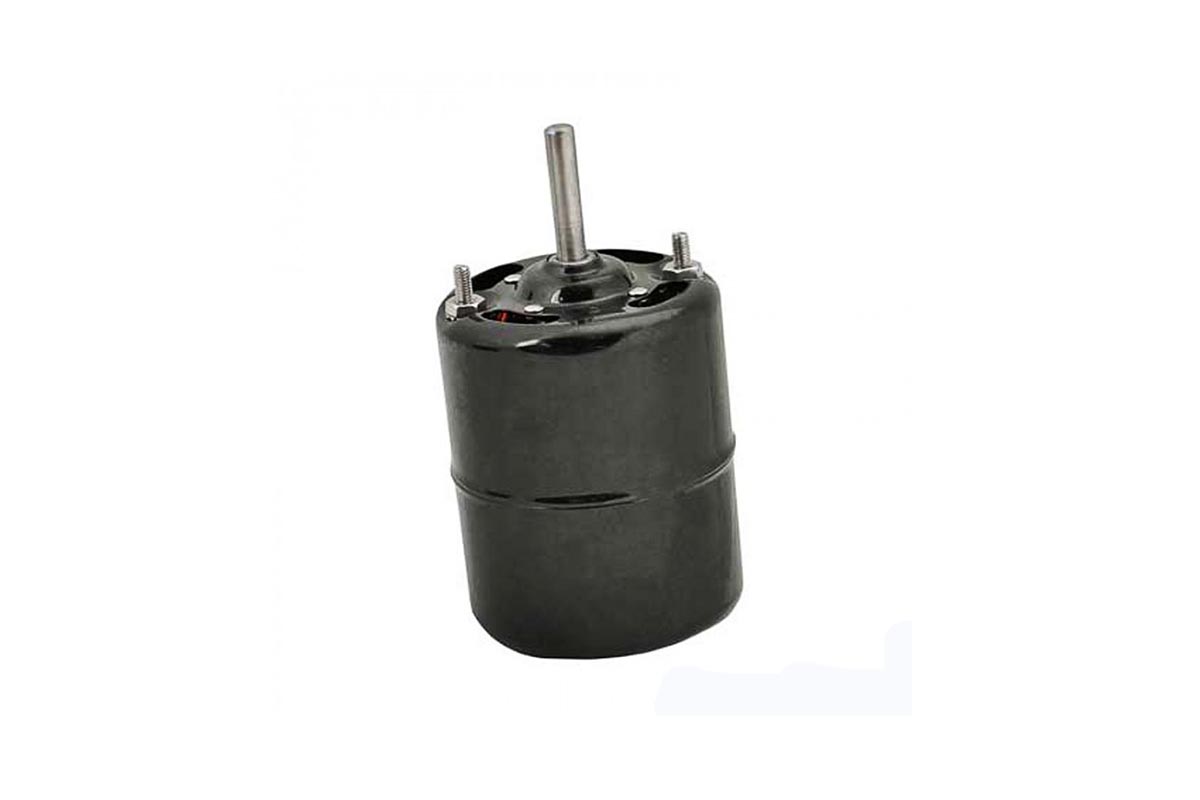

Blower Motor – Single Shaft 12V CCW 2 Speeds (1001149)

OEM Number: HA1120, RD3106-13, 2807-517-019, ABPN83-301091, MVA1-3291, ABPN83-3011091, A22-18014
Description: Multi Fit Applications Blower Motor
Volts: 12V
Length: 4.25” (OA Body)
Wire Type: 2 wire (internal ground) or 3 wire (external ground)
Motor Diameter: 3”
Motor Length: 3.41”
Mount Type: Stud
Rotation: CCW
Shaft Length: 1.5”
Shaft Type: Single (5/16” dia)
Speed(s): 2
Mounting Stud Distance: 2.31”
Vent: Vented
Note: 02-7086612, 203076, 4379-RD3106-13, 888384

Applications:
Freightliner Trucks Blower Motor Classic, XL FLD Series (1992-1988) & (1980-1974); WFC / WFT Series (2006-2003)

Kenworth Blower Motor C500 Series (1999-1979); Conventional(C-T-W Series); W900 Series (1997-1995); W900 Series w/Red Dot A/C (1982-1974)

MACK Blower Motor R,RL,RS,RW,U,DM Series (1986-1982); Conventional (1987-1976)

Volvo Blower Motor All Models

Western Star Blower Motor All Models (1984-1971)

Cross Reference: 1001149, 3602, ABP N83 301091, ABP N83 301131, 202020, HA1120,937167, 150-4580, 102-3008, E-803011, 2807-512-001, 2807-513-100, 2807-513-175, 2807-530-001, ZGG11032, B8E-18527A, 35524, A22-18014-000, MVA1-3291, 406143, 2807-517-019, 1099005, 274239, 4379-RD310613, 1-1032, 1-2614, 1-2619, 1-3291, 1-3297, 208974, 0680952-R93, 1691717-C91, 419993-C91, 26-13252, 18-01255, 73R0602, RD-3106-13, PF2608Q, RF9362020691, PM322, 01-3009, 30-1065, 30-1066, 1676901, 888384, 02-7086612, 60009-5005, ABPN83301091, ABPN83301131, A2218014000, MVA13291, 0680952R93, 1691717C91, 419993C91, 123787, PTAC3602, ABPN83-301091, RD3106-13
